| Production speed | 6,000 CPH |
| Machine weight | 800 Kg |
| Installed power | 2 kW |
| Power supply | 220-380 Volt |
| Operating air pressure | 6 bar |
| Air consumption per layer | 0.3 Nl |
| Loaded pallet dimensions | 1,200X800/1,000 Max h 2,250 |
Depalletizers

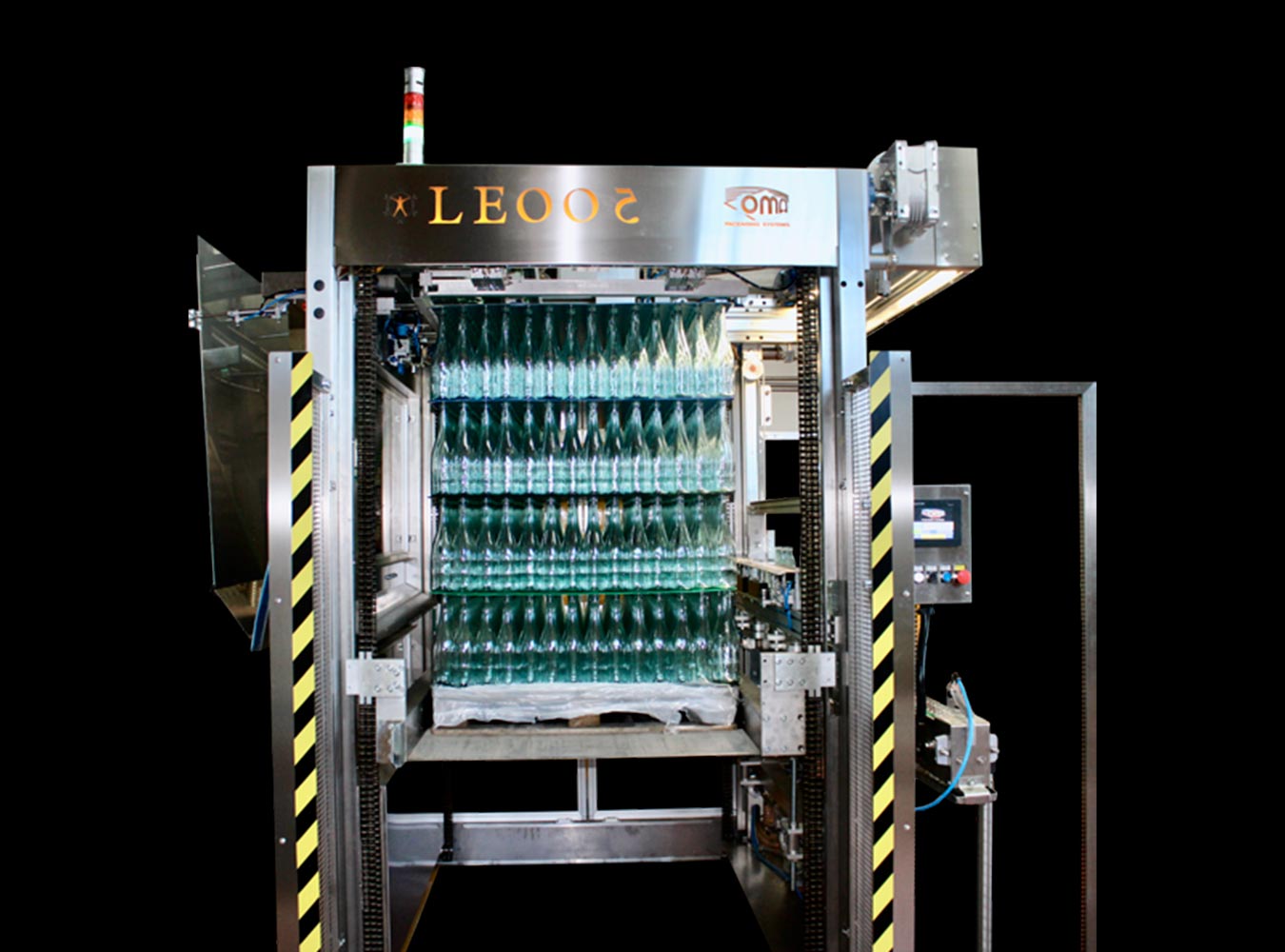

LEOOS
3,000 CPH
Automatic depalletizer with suction bar.
Production up to 6,000 CPH.

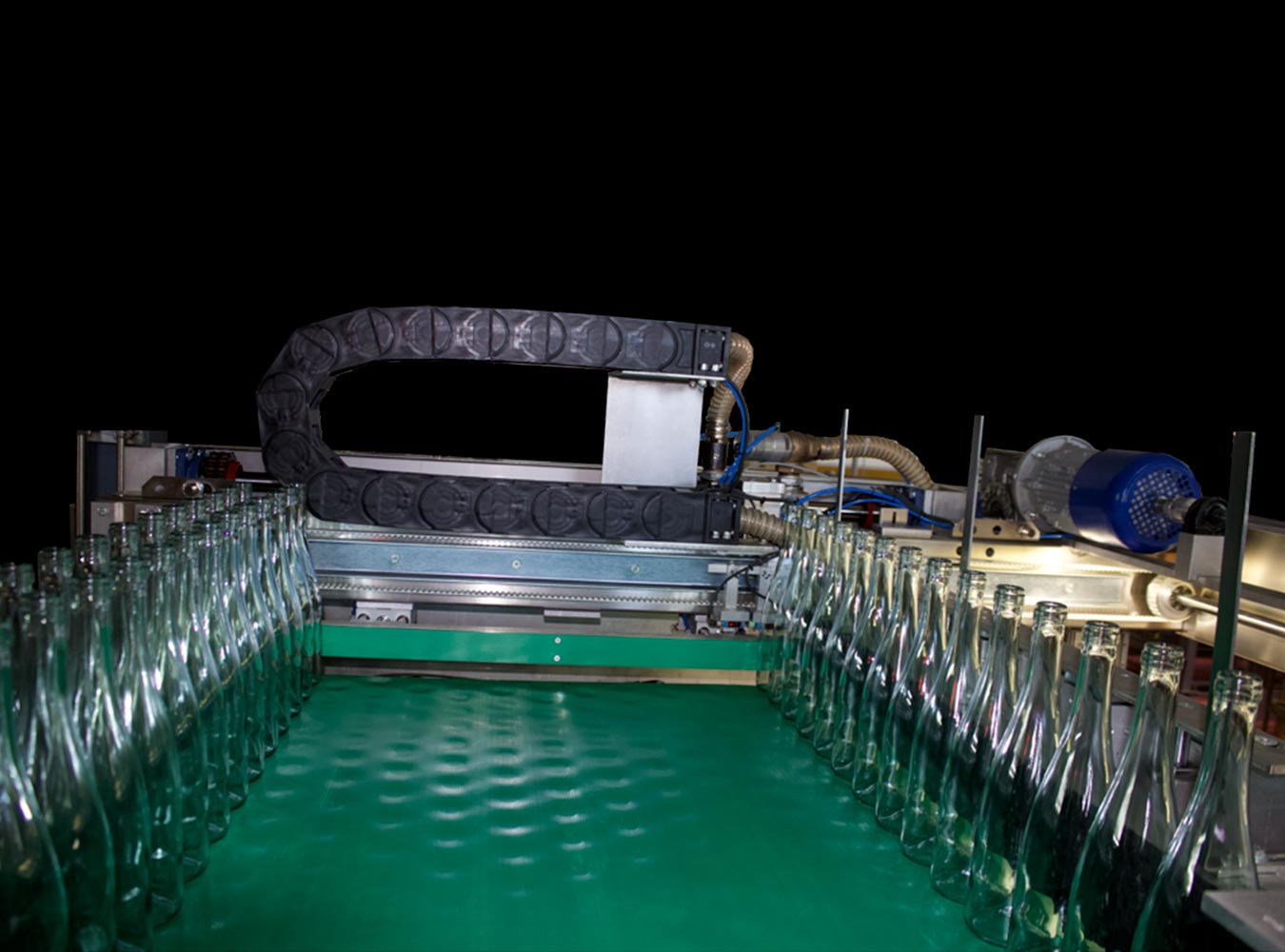

Designed to handle multiple container types, transferring them from the pallet directly onto the conveyor by means of a suction bar.
Technical Features:
- Extremely compact design.
- Automatic format changeover.
- Stainless steel frame.
- No accumulation table required.
- Low maintenance requirements.
- Full visibility during operation.
Data sheet
DEPALBLOCK 1000
Semi-automatic Depalletizer. Production up to 6,000 CPH. Designed to pick up new containers from the pallet and transfer them onto the accumulation table by means of inflatable tubes. The picking cycle is automatic and manually initiated by the operator.
discover more
DEPALBLOCK 2000 serie 3
Automatic Depalletizer Production up to 6,000 CPH. Designed to pick up new containers from the pallet and transfer them continuously onto the accumulation table by means of inflatable tubes.
discover more
DPB Agile
Manual Depalletizer. Production up to 3,000 CPH. Designed to pick up new containers from the pallet and transfer them onto the accumulation table by means of inflatable tubes.
discover more
