DPB Agile
Depalletizers
3000 b/h
Manual Depalletizer
Speed production 3.000 bph

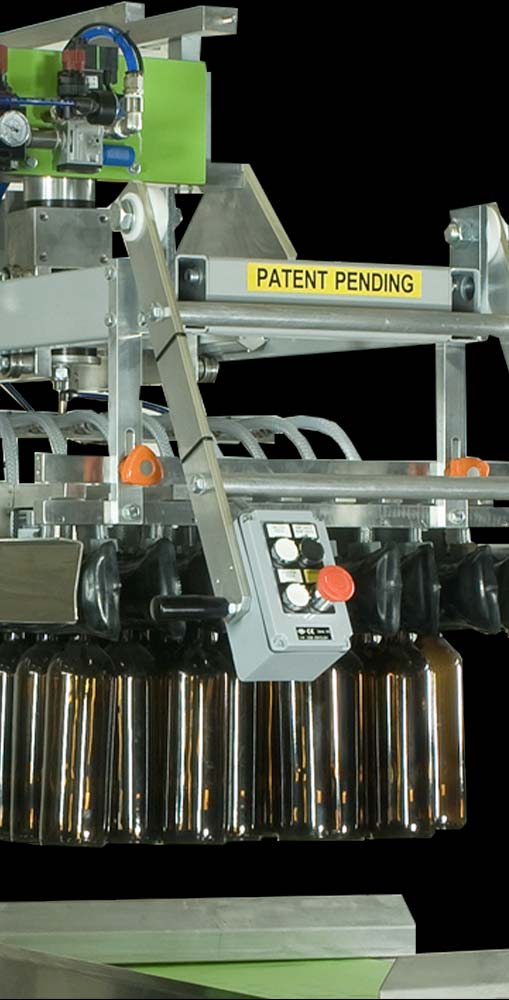

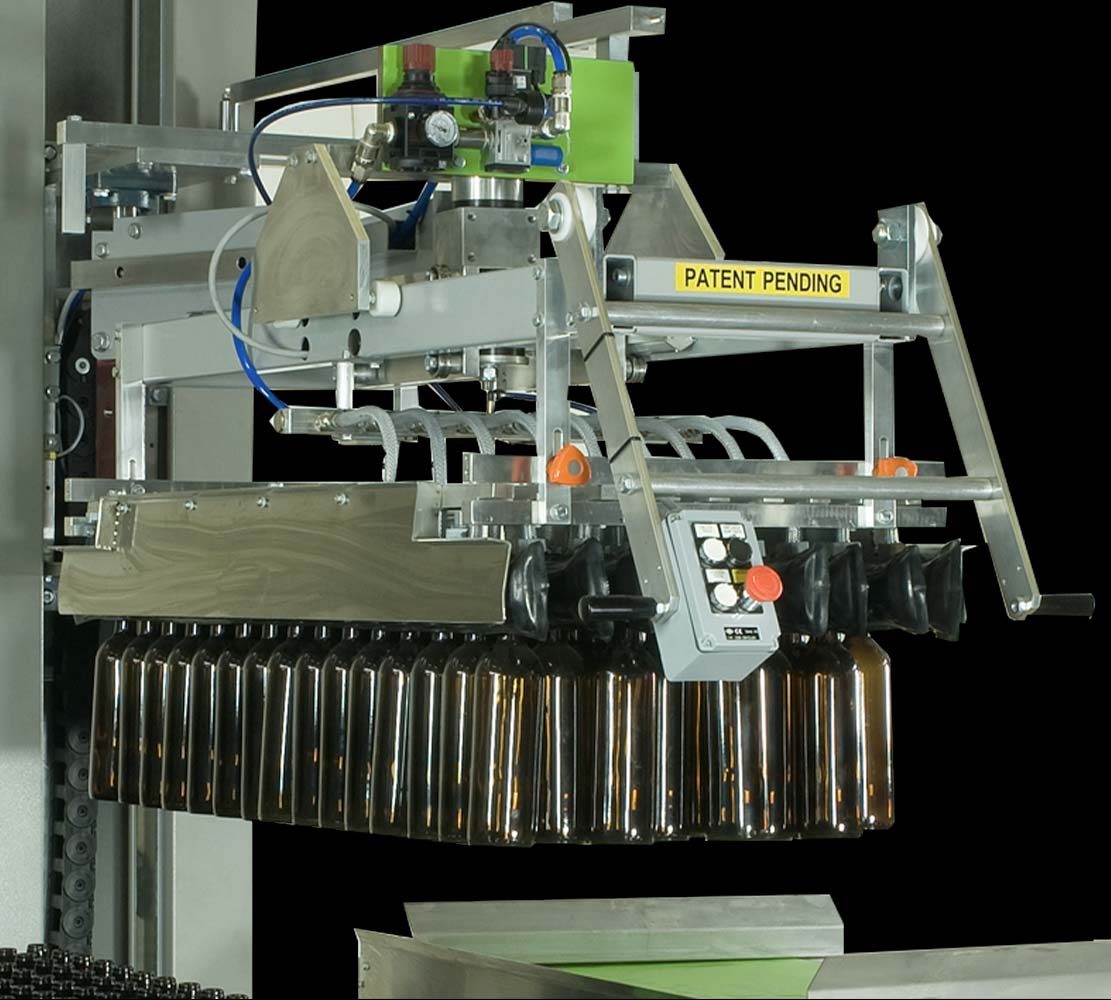

Suitable to picking up glass bottles from the pallet and release them onto the accumulation table through inflatable blades.
Characteristics:
- Very compact
- Manual control of the cycle
- Quick format change
- Low maintenance
- Good visibilty during the working cycle
Data sheet
DEPALBLOCK 2000 serie 3
Production speed 3.000 b/h Unit weight 1.500 Kg Power installed 2.2 kW Power supply 220-380 Volt Operation air pressure bar Consuption for layer 150 NI Full paddles dimensions 1200X800/1000 Max h 2.250
discover more
LEOOS
Production speed 4.000 b/h Unit weight 800 Kg Power installed 2 kW Power supply 220-380 Volt Operation air pressure 6 bar Consuption for layer 0,3 Nl Full paddles dimensions 1200X800/1000 Max h 2.250
discover more
DEPALBLOCK 1000
discover more
